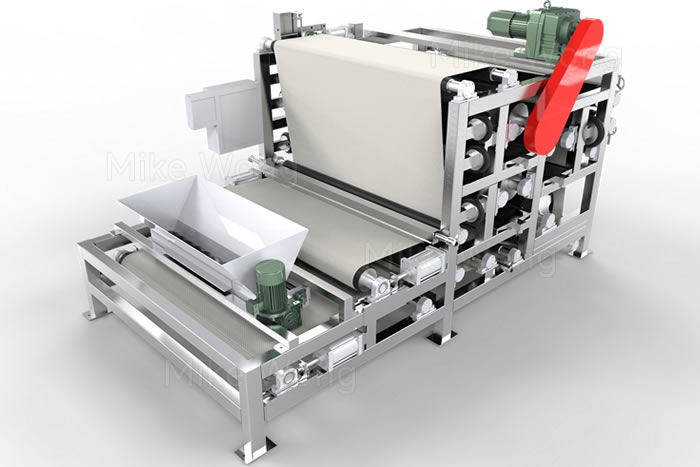

Specialized in Cassava residue dewatering machine—Chinese manufacturers
Especially suitable for Plant residue, plant fiber, such as:cassava residue, waste cassava pulp dewatering, paper pulp. The outer part of the roller is made of rubber, and the pressureand running speed can be adjusted,It is the preferred equipment for producing organic fertilizer, biomass fuel and feed processing. Whatsapp：+86 13926231556

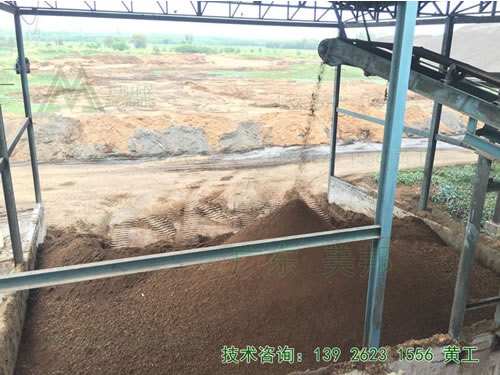

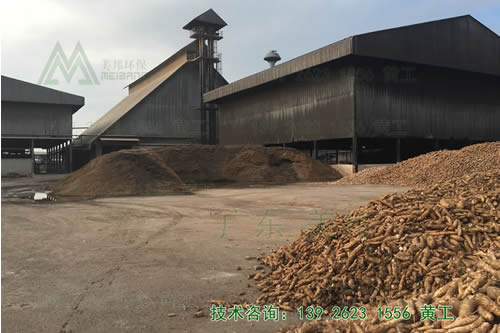

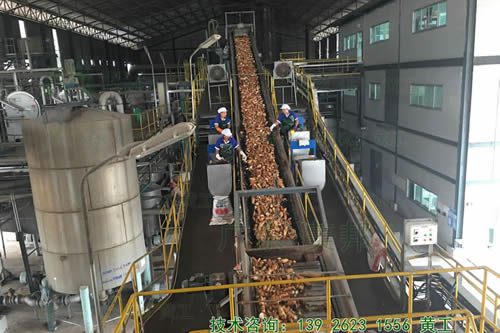

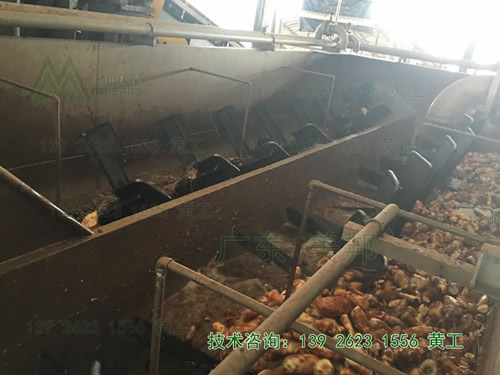

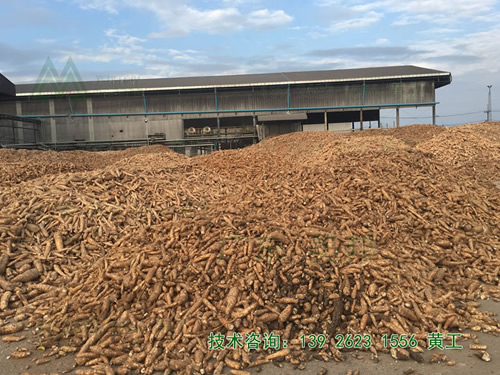

Cassava residue dewatering case
Case lacation:Chonburi,Bangkok,Thailand

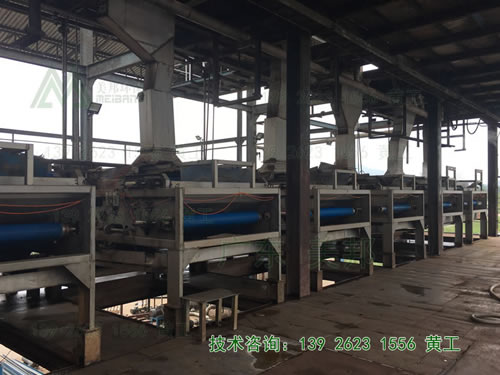

Equipment Quantity: Six set heavy-duty 3 pairs rollers DYQ1500P3
Output Capacity:above 2.5-3 tons per hour
Area occupied:4.5m×1.85m×2.85m(L*W*H)
Intput moisture:85%-92%
Output moisture:50%-55%
The equipment runs automatically without manual operation,After dewatering, can reduce moisture content,Reduce transportation and drying costs.Cassava pulp dewatering
Main feature: Advanced structure. It's good at dewatering for long fiber. Such as cassava, tea dregs, bagasse, wood pulp fiber, brewery malt spent, cocopeat fiber and so on. Fully automatic 24 hours operation, larger treatment capacity, lower moisture, consumption, cost and easy maintenance.

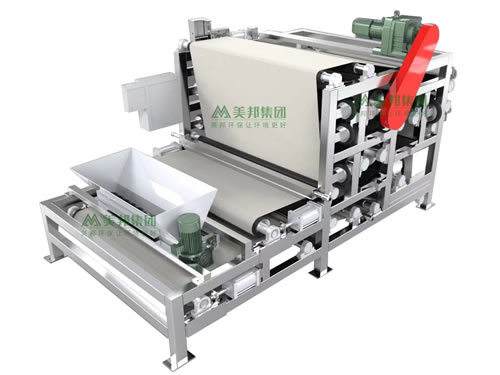

Which model is most suitable?

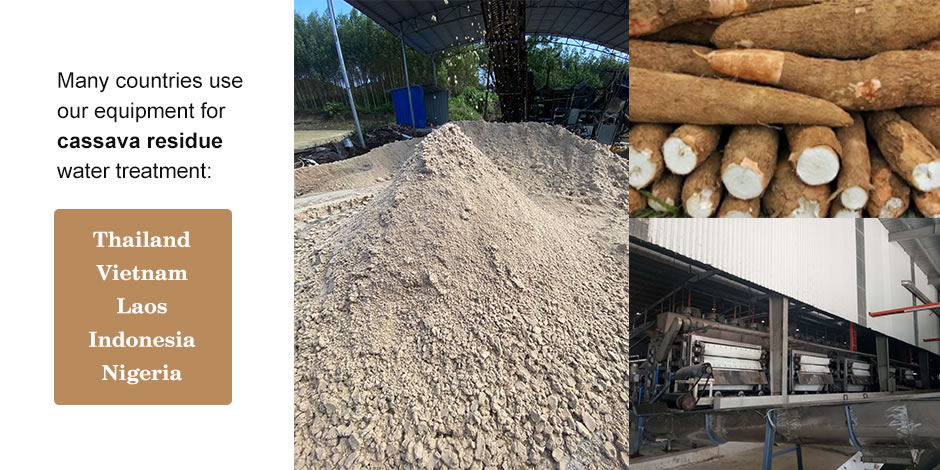

Our one of the most popular tpye is for waste cassava dewatering. Exported to many Countires. Such as Vietnam,Thailand,Laos, Indonesia,Nigeria, India, ect. Presscake with the lowest moisture content，Construction with additional 3 sets of Nip-Squeezing rollers,available to get the cake with maximum solids content，Reliable and stable in operation Reinforce structure design .Longer lifetime, low maintenance cost Low power consumption

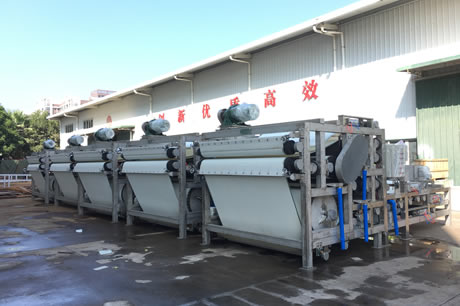

What we can do
Machine Applications

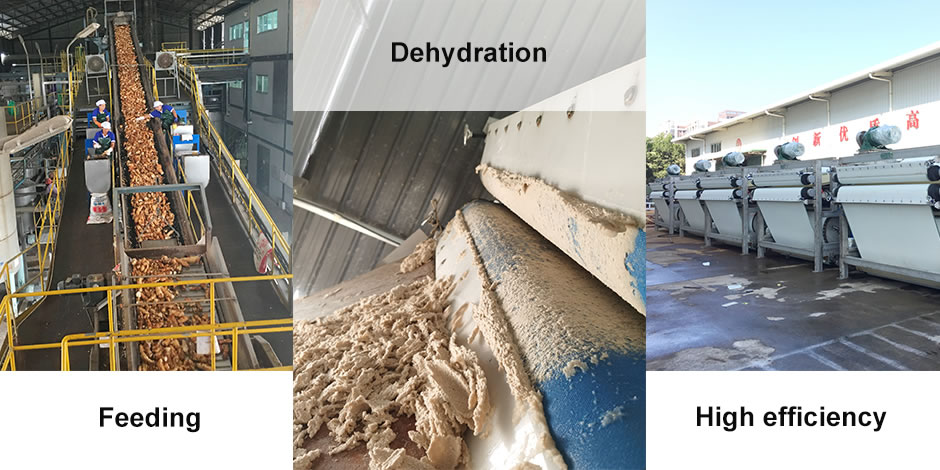

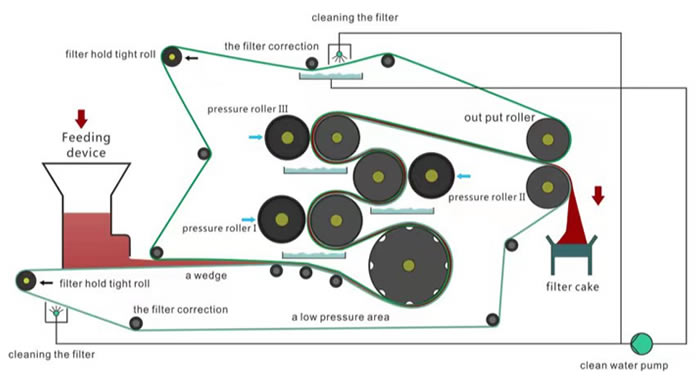

Operation diagram & Advantages
- Automatic feeder, flattening the raw materials to a certain thickness of about 5cm, facilitating the next step to dewatering
- After feeding, the raw materials arrive at the first set of pressing and dewatering rollers, and the pressure is adjusted to 0.35Mpa
- The material reaches the second group of squeezing and dewatering rollers, and the pressure is adjusted to 0.4Mpa
- The material reaches the third group of pressing and dewatering rollers, and the pressure is adjusted to 0.5Mpa
- After three sets of roller pressing and dehydration, themoisture content decreased to around 50-55%,Reduce subsequent drying costs
Types,Size and Specifications
Type |
|||
Parameters |
DYQ1000P3 |
DYQ1500P3 |
DYQ2000P3 |
|
Main motor Power(kw) |
5.5kw |
7.5kw |
11kw |
UnitPower(kw) |
11.5kw |
13.5kw |
18kw |
Belt Width(mm) |
1000mm |
1500mm |
2000mm |
Output Capacity(ton/h) |
1.8-2 |
2.2-2.5 |
2.6-3 |
Long(m) |
4.5 |
4.5 |
4.5 |
Width(m) |
1.85 |
2.3 |
2.85 |
High(m) |
2.85 |
2.85 |
2.85 |
Weight(tons) |
4.5 |
5.5 |
7.0 |
moisture content |
50%--55%(After dewatering) |
||
What Client's Say
boss Wong,Sumatra,Indonesia
boss Bai,Ho Chi Minh, Vietnam
Sarun , Thailand
Meet the Team
The founder of Meibang environmental protection equipment
Engaged in international trade has 11 years of experience in equipment sales
Have 13 years experience in mechanical design,gas control design

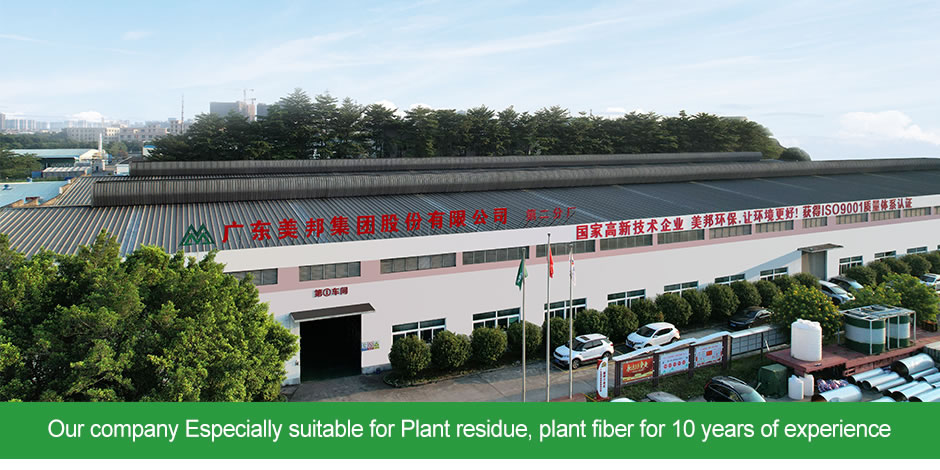

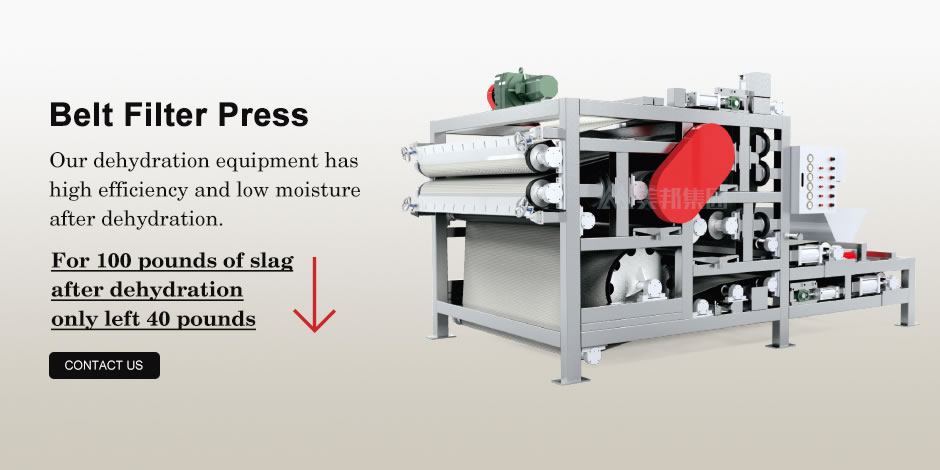

Guangdong Meibang Holding Group Co., Ltd.Established in 2011,Located in Huadu district of Guangzhou,China.We are a leading & professional equipment manufacturer for Belt Filter Press,Sludge Dewatering Machine,Residue Squeezing Belt Press.We provide the integrative solution for you about separating and dewatering of solid & liquid.And we also customized design for customers if requested.
Our Company have specialised in developing and manufacturing belt filter press for industrial and sewage sludge dewatering.Through absorbing advance technique from foreign countries and studying carefully for years ,we've designed the vertical & horizontal type of Belt Thickener Filter Press,which is corrosion resisting,low moisture content,low chemical consumption,low operating cost,stable performance ect.As you can see,our product exactly surpass the competitor in terms of performance and workmanship.
